Victoria™ Series Foot Prop

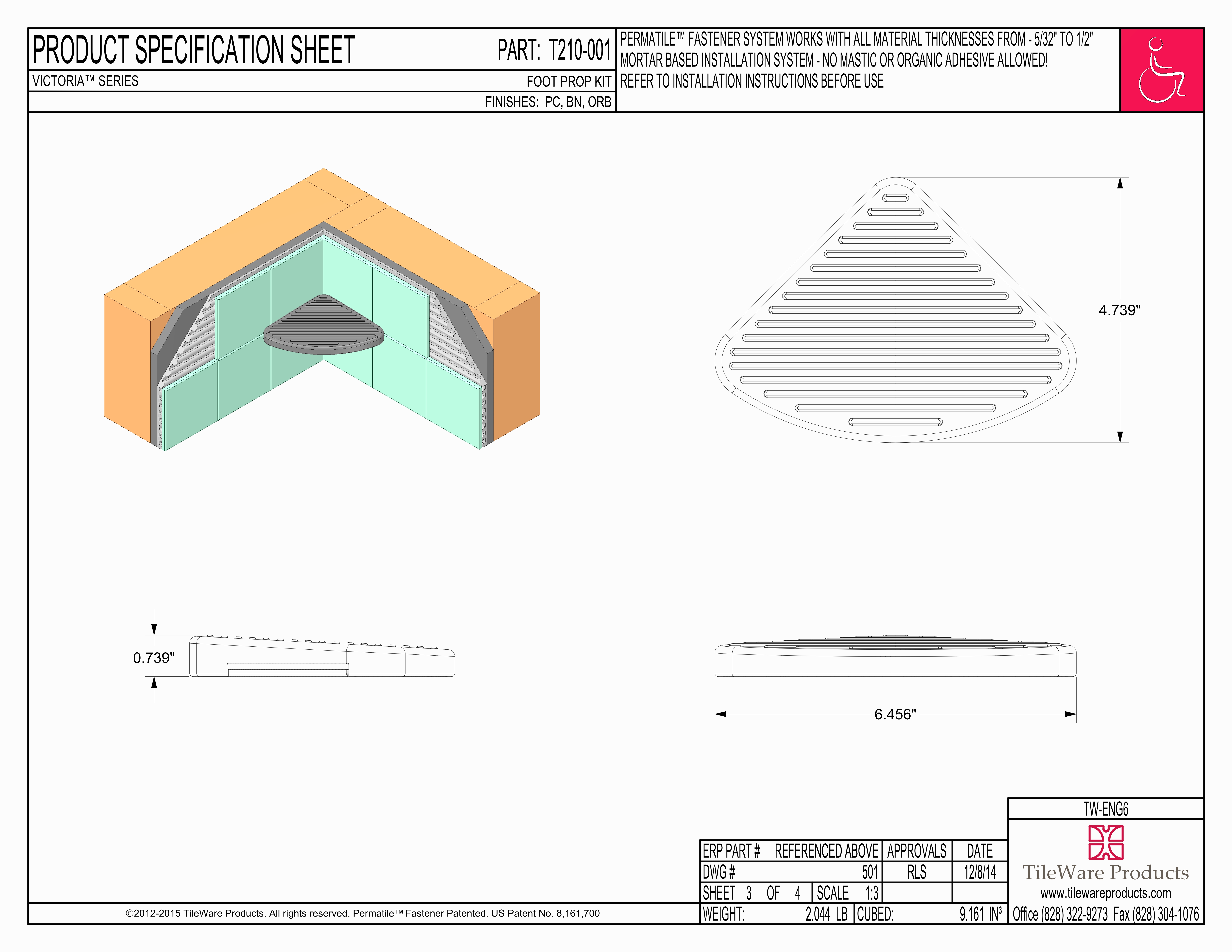

TileWare's Foot Prop is a leg shaving utility, as well as an assist (support) device. The system was designed for corner applications and will double as a shelf utility. The styling and function is very simple, equipped with low profile treads for slip resistance and 3 mounting screws that attach to our PermaTile™ Fastener System. Not only extraordinarily strong, this system was engineered to leverage the installation properties of tile and thin-set mortar. Constructed from solid zinc, our premium finishes come with a 5 year warranty. TileWare's styling elements and variety of finishes will seamlessly integrate with your shower and bath design. By combining style, function and our patented, mortar-based fastener technology, our foot prop provides both style and longevity.

Foot Prop

SKU:
TX210-001-PC

Replacement Parts

To view individual part specifications, please click through the associated replacement part.
SKU Product Description
C210-001 Foot Prop Top
C210-002 Foot Prop Bottom
C200-029 Machine Screw 10-24 x 7/16"
C200-030 Machine Screw 10-24 x 7/16"

Mating PermaTile™ Rough-In Wall Anchor - SOLD SEPARATELY

PermaTile™ Rough-In Anchoring System

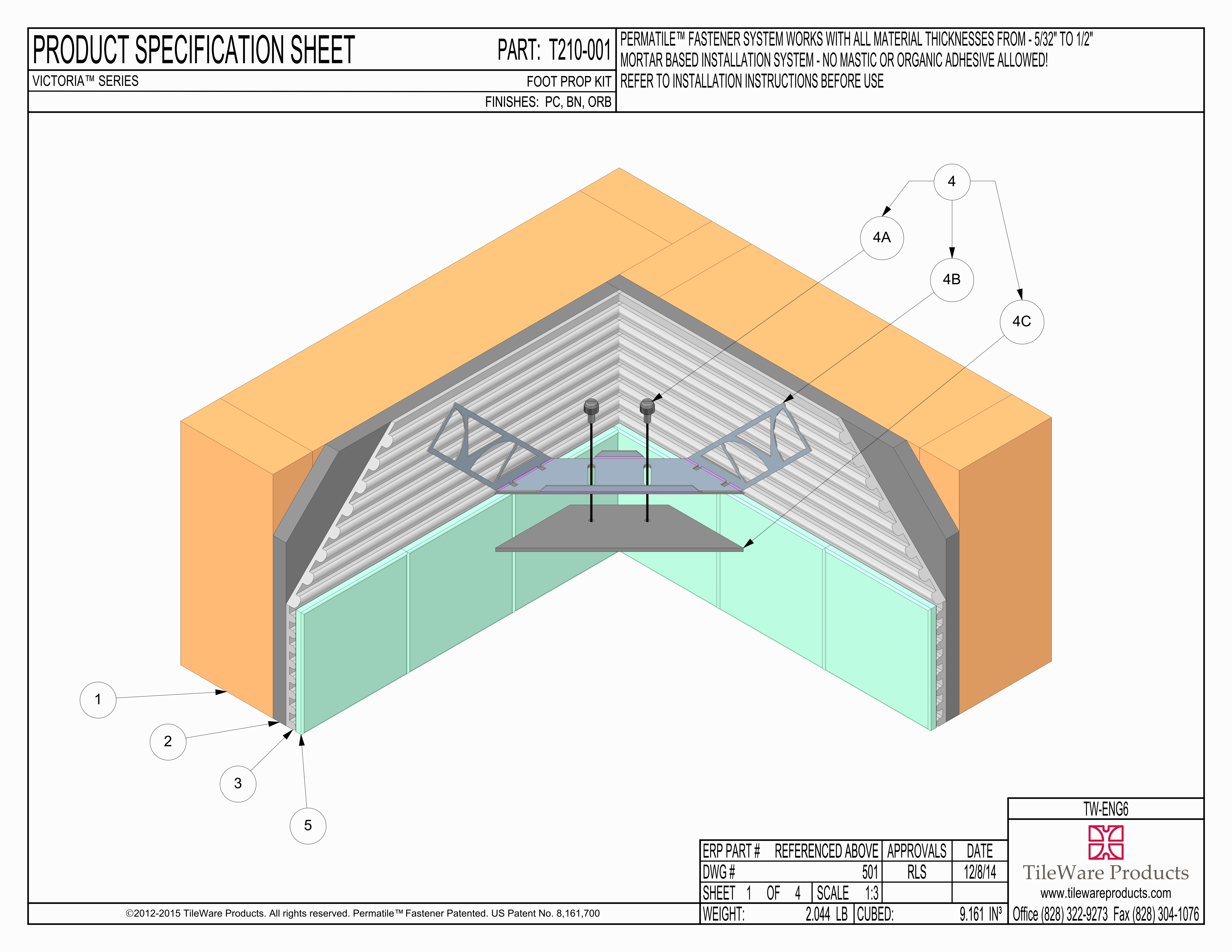

OUR TECHNOLOGY - Mounting failures and compromised waterproofing are now things of the past. TileWare Products introduces our watermark innovation, the PermaTile™ Rough-In Anchoring System: the only non-penetrating, non-intrusive mortar-based anchoring technology that protects waterproofed tile construction systems. Our patented technology combines tile-substrates, thin-set "cement" adhesive, tile and our specially-configured stainless steel anchors into a single monolithic structure... like rebar in cement. TileWare's welded anchoring assemblies transfer the mechanical load across multiple adhesive points, instead of a single penetrating drill point. Our blended system becomes one with the wall tile, holding 1175 lbs behind the tile.
